AX-E 300
AX-E 300 SERIES
Full Automatic Edge Banding Machine
The AX-E 300 is where speed meets precision — a fully automatic edge banding machine built to turn every panel into a flawless finished piece, shift after shift. Its robust steel rail and aluminum beam frame delivers rock-solid stability, while a complete processing line — from pre-milling through gluing, trimming, corner rounding, and buffing — transforms raw edges into a seamless, professional finish your customers will notice. With PC-based, easy to use control and rapid changeover between production runs, the AX-E 300 gives you the confidence to take on any order, of any size, without compromise.
Where Every Edge Meets Perfection

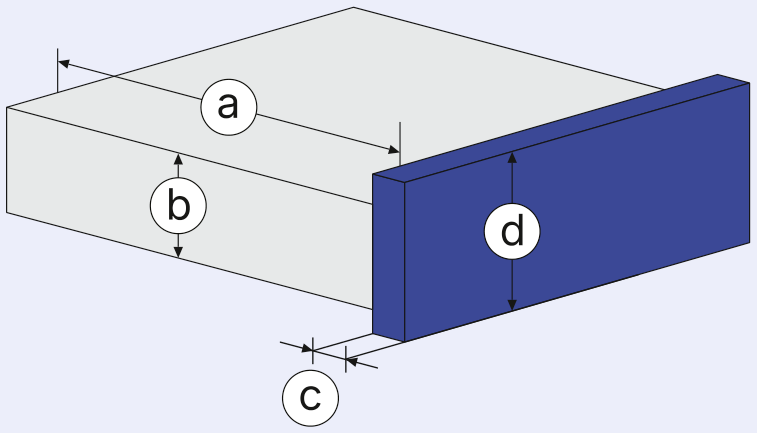

a- Panel Width Panel Genişliği
b- Panel Height Panel Yüksekliği
c- Edge Band Thickness Kenar Bandı Kalınlığı
d- Edge Band Height Kenar Bandı Yüksekliği
| Özellik |  |
 |
 |
 |
|---|---|---|---|---|
| Glue TypeTutkal Tipi | EVA | |||
| Feed SpeedsÇalışma Hızları | 16-23-26m/min 630 – 905 – 1025 IPM |
|||
| Panel WidthPanel Genişliği | ≥65mm 2.55″ |
≥60mm 2.36″ |
≥65mm 2.55″ |
≥60mm 2.36″ |
| Panel ThicknessPanel Kalınlığı | 8 – 60mm 0.31 – 2.36″ |
10 – 60mm 0.39 – 2.36″ |
||
| Edge Type WidthKenar Bant Genişliği | 12 – 65mm 0.47 – 2.55″ |
|||
| Edge Type ThicknessKenar Bant Kalınlığı | 0.4 – 3mm 0.015 – 0.11″ |
0.3 – 3mm 0.011 – 0.11″ |
||
| Motor PowerMotor Gücü | 22kW 29.50 HP |
22.95kW 30.70 HP |
30kW 40.20 HP |
31.5kW 42.25 HP |
| Weight (Approx)Ağırlık (Yaklaşık) | 3200kg 7055 lbs |
2700kg 5955 lbs |
3500kg 7715 lbs |
3500kg 7715 lbs |
| Narrow Part Feeder UnitDar Parça Besleme Sistemi | ||||
| Feeding RollerBesleme Merdanesi | Pneumatic | Servo | Pneumatic | Servo |
| Seperating Agent UnitTutkal Ayırıcı Solvent Ünitesi | ||||
| Pre-Milling UnitÖn Freze Ünitesi | ||||
| Infrared Heating LampKızılötesi Isıtma Lambası | ||||
| Pre-Melting Glue SystemÖn Eritmeli Tutkal Ünitesi | ||||
| Servo Prec Tape Feeding SystemServo Ayar Bant Besleme Sistemi | ||||
| Edge Pressure UnitRoller Baskı Ünitesi | ||||
| Fine Trimming UnitHassas Freze Ünitesi | Pneumatic | Servo | Pneumatic | Servo |
| Profile Scrapping UnitProfil Kazıma Ünitesi | Pneumatic | Servo | Pneumatic | Servo |
| Flat Scrapping UnitDüz Kazıma Ünitesi | ||||
| End Trimming UnitBaş/Son Kesme Ünitesi | ||||
| Corner Rounding UnitKöşe Yuvarlama Ünitesi | 2 Motor | 2 Motor | 4 Motor | 4 Motor |
| Cleaning Agent UnitTemizleyici Solvent Ünitesi | ||||
| Buffing UnitPolisaj Ünitesi | 2 Motor | 2 Motor | 4 Motor | 4 Motor |
At AXTEA, our expert team provides timely, accurate, and reliable after-sales service to our customers. With our extensive service capabilities, we support machines across a wide range of brands and models.
-
Installation, Training and Commissioning
Professional installation, training and commissioning services provided by our expert team, so your operators are productive from the first shift.
-
On-Site Service
When needed, we provide fast on-site service support to ensure uninterrupted production.
-
Call Center and Remote Connection
With our dedicated call center service, available whenever needed, we provide remote support for all customer requirements.
-
Repair, Maintenance and Spare Part Support
With detailed exploded spare parts lists, we make it easy to identify requirements and provide fast, accurate spare parts support.
